| MECHANICAL DATA |

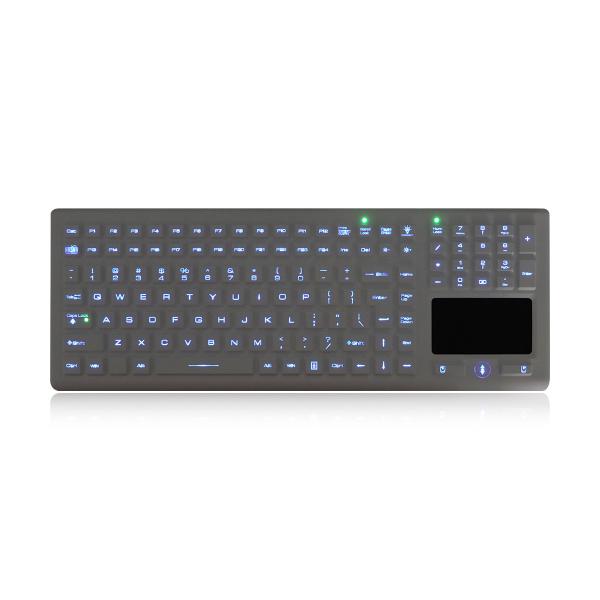

| Key | 124 keys (including 2 mouse buttons) |
| Key top style | Protuberant rectangular keys with tactile feeling. |
| Key Size | 12.0mm X 12.0mm for normal keys |
| Key travel | 1.50mm±0.10mm |
| Actuation Force | 1.2N±0.2N (pressure point ) |
| Switch life | more than 5 million of operations. |
| Touch pad | 1.3mm thick PCB, containing polyester film |
| Touchpad cover | Composite |
| More than Lifetime 10 million strokes |
| Mutual capacitance sensing |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5V ± 0.25V |
| Current rating (active mode) | < 10 mA |
| G.W. | 0.80KGs |
| ELECTRICAL DATA |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA when backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB |
| Interface | PS2, USB available |
| Cable length | Standard 2.0m, customized length available. |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 100% |
| Atmospheric pressure | 60-106Kpa |
| RELIABILITY |
| RoHS compliant, CE and FCC certified |
| Protection Level | IP68 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipment, operation rooms, dialysis centers etc.;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc.
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses MILITARY:Vehicle, aerospace, naval, defense, maritime, radar, console, portable, rugged laptop, UAV ground station etc. |
