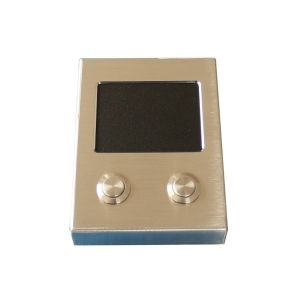

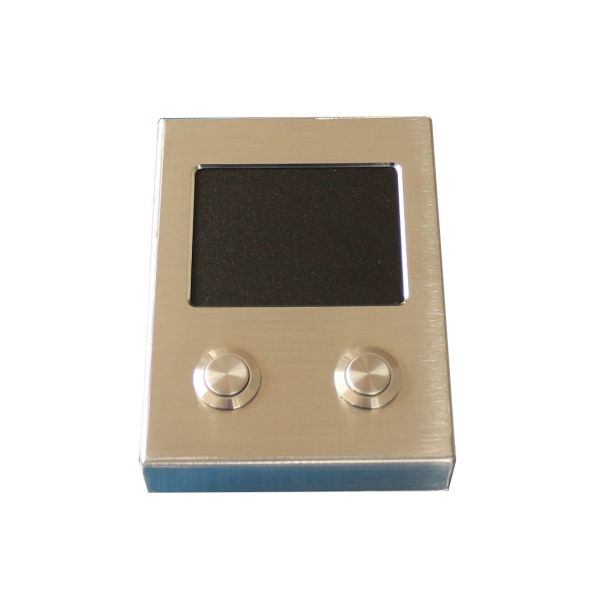

Ruggedized Computer Touchpad Standalone Desktop Sealed With 2 Mouse Buttons

Brand Name : IKB-MKB

Model Number : K-TEK-B85TP-DT-DWP

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Material : Stainless Steel

Dimension : 85.0mm x 110.0mm

Power Supply : 5 VDC ± 0.25V

Operation Temperature : -20°C to +60°C

Color : Original Stainless Steel Color

Contact Now

MODEL NO.: K-TEK-B85TP-DT-DWP

DESCRIPTION: IP68 dynamic sealed and stainless steel ruggedized tough touchpad with IP67 dynamic sealed stainless steel mouse buttons, with movable stand alone desktop version. Which is good for outdoor application with direct rain and very harsh environments with humidity,

much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 85.0mm x 110.0mm (L x W)

Ruggedized Computer Touchpad Standalone Desktop Sealed With 2 Mouse Buttons

Ruggedized Computer Touchpad Standalone Desktop Sealed With 2 Mouse Buttons

TECHNICAL SPECIFICATION

ITEM SPECIFICATION
Mechanical Front Plate Quality brushed stainless steel
Touchpad thickness 1.2 mm PCB thickness inclusive of mylar layer
Validated touch width 45.0mm (max)
Validated touch length 60.0mm (max)
Mounting Rack Movable stand alone desktop version
Back Metal Cover Rear side integrated electronics protected by a metal cover
Touchpad lifespan > 5 years
Dimensions Touchpad: 60.0mm x 45.0mm; Front Mounting Panel: 85.0mm x 110.0mm (front panel)
Interface PS2 and USB both available
Electrical Power supply 5 VDC ± 0.25V
Work current 17 mA (normal)
X/Y position sensing resolution: 1000 points/inch (40 points/mm)
X/Y position reporting: Relative
Tracking speed: Maximum 1,016 m/sec
Protection level: IP68 dynamic (front panel)
Static Release: 15 KV (front panel)
EMC Standard: EN 55032:2015, EN 55035:2017
Environmental Operating temperature: -20°C to +60°C
Storage temperature: - 30°C to + 70°C
Operating RH: 10%-95%
Atmospheric pressure: 60-106Kpa
Reliability MTBF >20000H
MTTR < 30min
Key Switch Lifespan >1 million
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
Packing Details Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
